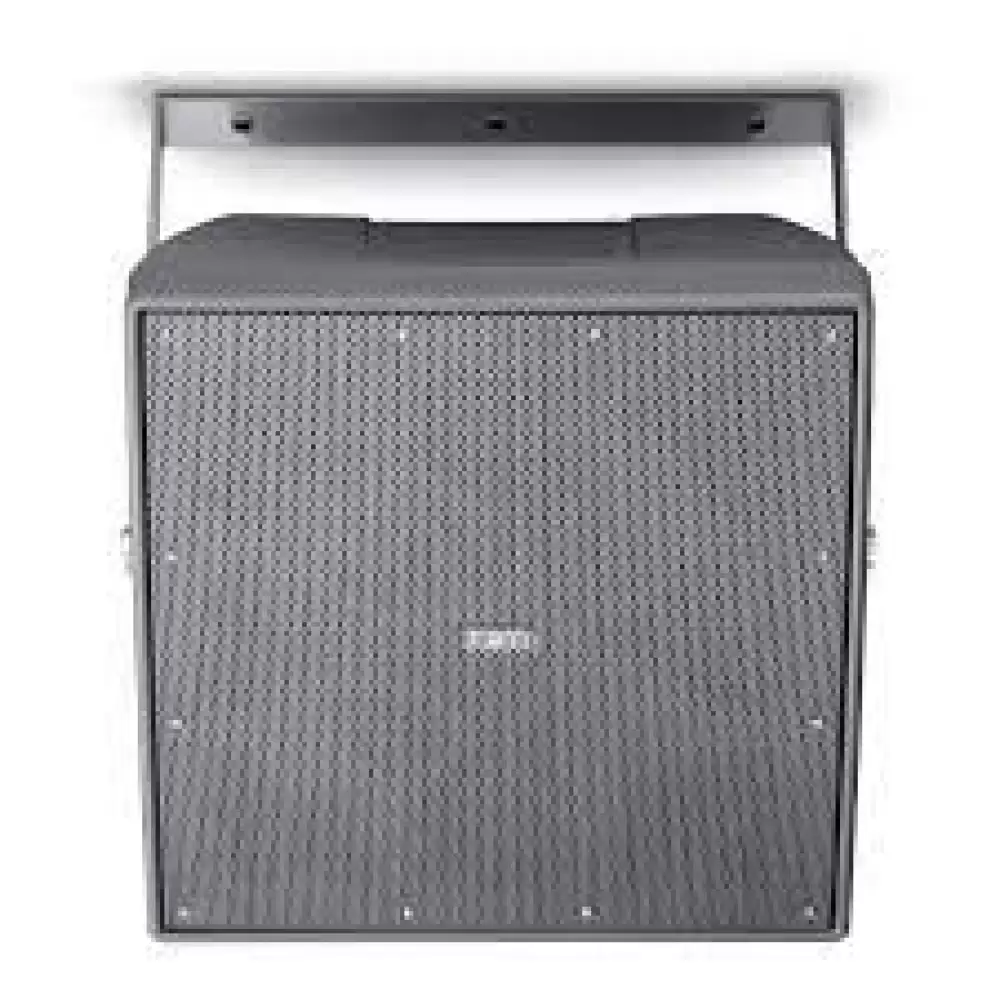

SHADOW 114S T

Description

This is a compact, low frequency system for additional low end. SHADOW 114S system has the same enclosure and hardware accessories of the SHADOW 112, with additional extended low frequencies reproduction to provide a wide range of applications.


14” Subwoofer 700W/8ohm - 129,5dB SPL
  • 14” woofer with 3” coil
  • An optional transformer model, SHADOW 114ST, is also available providing impedance matching to 100V lines, with 300W power.
  • 4 wires cable to select the desired power tapping
  • Sturdy molded polyethylene curved enclosure
  • Water-stop grill with 3 layers of protection
  • Steel U bracket and other included hardware accessories IP55 weather resistant
  • Grado di protezione IP55
  • Standard grey finish RAL 7011

TECHNICAL SPECIFICATIONS
CODE:36196
CONFIGURATION:2 way
RECOMMENDED AMPLIFIER:700 W RMS
LONG TERM POWER:350 W
SHORT TERM POWER:1400 W
NOMINAL IMPEDANCE:8 ohm
FREQUENCY RESPONSE:60Hz - 400Hz -6dB
LOW FREQUENCY WOOFER:14 - 3 coil inch
MAXIMUM SPL CONT/PEAK:125.5 / 129.5 dB
DISPERSION:omnidirectional HxV
CROSSOVER FREQUENCY:external KHz
INPUT CONNECTOR:4 wire cable
NET DIMENSION (WXHXD):430x430x400 - 16.92x16.92x15.74x mm/inch
NET WEIGHT:17/37.4 Kg/lb
TRANSPORT DIMENSION (WXHXD):530x530x500 mm/inch
TRANSPORT WEIGHT:20.86x20.86x19.68 kg/lb
