Y subwoofer
Description
Y subwoofer
Subwoofers
High performance flyable cardioid subwoofer
- Components 18"/12"
- Dispersion Cardioid
- SPLmax 134 dB
- Weight 52 kg / 115 lb
Article number Z0709
Product Description

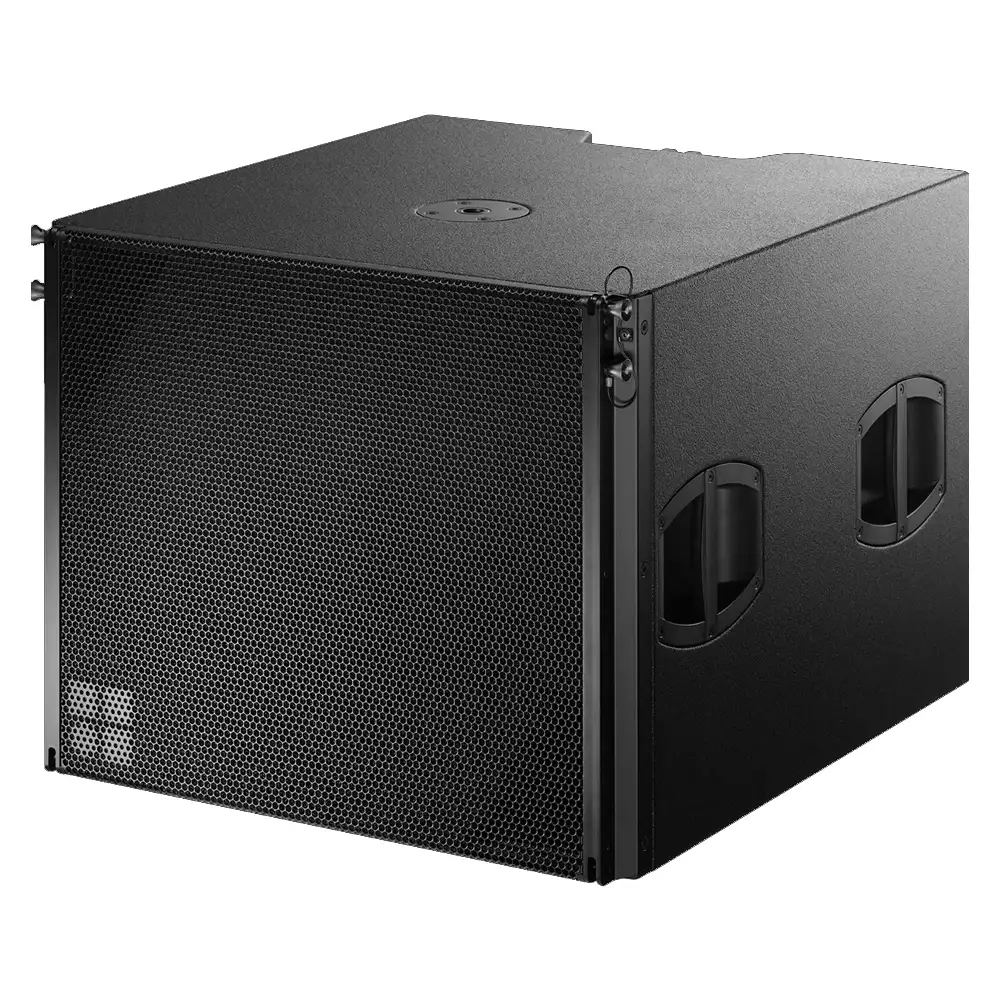

The Y-SUB is an actively driven cardioid subwoofer powered by a single amplifier channel. It houses two long excursion neodymium drivers in an integrated cardioid setup, an 18” driver in a bass-reflex chamber facing to the front and a 12” driver in a two chamber bandpass design radiating towards the rear. The cardioid dispersion pattern resulting from this arrangement avoids the distribution of energy behind the system, providing the greatest accuracy of low frequency reproduction and reducing the energy dispersed into unwanted areas. The Y-SUB is fitted with three point rigging hardware and can be flown in a column of purely Y subwoofers, at the top of a Y array or used in a ground stacked setup. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles with four wheels mounted to the rear. An optional transport lid protects the front of the subwoofer during transit.
